Food Prep Area

About This Room

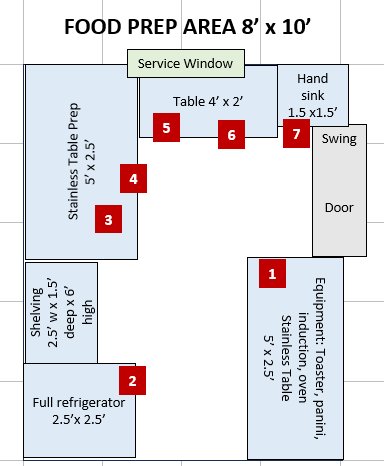

This is the 8′ × 10′ Food Prep room introduced in the NOVUS layout (May 9, 2026). It supersedes the dual-purpose chocolate-prep-table approach in Vol. II §6 and gives Sunday brunch its own production space.

Operational scope

• Sunday brunch service — 8:00 AM to 2:00 PM, ~30–50 covers (savory plates, bagels, pastries, cheese & fruit, Brunch Chocolate Trio plated here)
• Daily hors d’oeuvres prep Wed–Sat — charcuterie boards, cheese plates, marinated olives, nuts, crostini, smoked salmon, hummus and dips, warmed brie or baguette
• Light reheating only — bagel toaster, panini press, induction burner for warming sauces or melting butter, countertop convection oven for warming pastries and finishing crostini
• No grease cooking, no open flame, no fryer, no range, no grill — preserves the no-Type-I-hood and avoids triggering Durham AHJ kitchen-rated venting requirements

Environmental & Code Baseline

Environmental targets

• Ambient temperature: 68–75°F (food-prep range — looser tolerance than chocolate prep)
• Relative humidity: no active control required (40–60% RH typical, follows ambient)
• Heat load in active prep: 5,000–8,000 BTU/hr (toaster + induction + UC fridge + staff)
• Ventilation: ~50–70 CFM supply, balanced exhaust = 4–6 air changes per hour. Type II hood over the toaster/panini line is recommended but not always required — confirm with Durham AHJ at plan review.

Code requirements (NC Food Code 15A NCAC 18A .2600)

• Dedicated hand-wash sink in the room (separate from any hand sink in adjacent rooms)
• FRP wall panels to 4′ minimum height, full-height behind any sink or splash zone
• Sealed, coved, non-porous flooring — sheet vinyl or epoxy with integral cove base
• Smooth, washable ceiling — vinyl-faced acoustical tile or painted gypsum (NOT exposed structure)
• All food-contact surfaces NSF-certified
• Cold storage: holds 41°F or below; reheating equipment must be capable of bringing food to 165°F within 2 hours
• Indirect drain (1″ air gap) from any food-prep sink
• Hand sink positioned at the door
• Aisle clearance: 36″ minimum (room width gives ~42″ actual aisle — comfortable for a single chef plus an occasional helper)
• Pass-through window to FOH dining floor — speeds Sunday brunch plate runs

Equipment Specifications

What Each Piece of Equipment Actually Makes

1. Conveyor Toaster — The bagel and bread engine

Continuous-flow toasting at 360 slices/hour. The piece that prevents Sunday morning bottlenecks.

• Bagels — split halves toasted to order in ~30 seconds, the core brunch use case
• Bagel chips for charcuterie boards
• English muffins — base for any eggs benedict variation
• Toast points for smoked salmon plates or chicken liver mousse hors d’oeuvres
• Crostini base — sliced baguette rounds, lightly toasted
• Pita rounds for hummus and dip plates
• Sourdough toast as the base for avocado toast (a Durham brunch staple)

Without a conveyor toaster, your kitchen bottleneck on Sunday morning is bagel toast, full stop.

2. Panini Press — The warm-finish workhorse

Dual independent zones — grooved plate and flat plate — operating as two pieces of equipment in one footprint.

Grooved side: Pressed sandwiches (smoked salmon + dill cream cheese on dark rye, prosciutto + fig + brie on ciabatta), halloumi, crostini with melted cheese, bruschetta with grill marks, quick-grilled vegetables for charcuterie boards.

Flat side: Eggs over easy or sunny-side up, smashed potato cakes, warmed brie wheels, pre-warming flatbreads or wraps, raclette-style cheese applications.

The dual independent thermostats are why this earns its footprint.

3. Induction Burner — Any sauce, any liquid, any temperature

100 power levels of precise heat. The single irreplaceable piece in this lineup.

• Hollandaise sauce — eggs benedict requires precise low-temperature whisking
• Melted butter, warm cheese fondue, hot honey for boards
• Reheating soup or bisque cups for winter brunch
• Mulled wine for fall and winter brunch service
• Caramelized onions, pan-searing scallops
• Heating cream for ad-hoc ganache work

Hollandaise alone justifies the $900 — eggs benedict is a brunch staple that drives ticket averages and Sunday repeat visits.

4. Countertop Convection Oven — The volume engine

Half-size sheet pan capacity, four racks, even circulation. The piece that makes 50-cover brunch service actually possible.

• Warming pre-baked pastries (croissants, danishes, scones) — 3 min at 300°F
• Baked eggs / shirred eggs in ramekins — 12 ramekins per cycle
• Warming quiche slices to order
• Crisping baguettes before slicing for crostini base
• Melting brie or camembert in their rinds for service
• Pre-heating plates for brunch service
• Toasting nuts and seeds for charcuterie garnish

Source pastries, don’t bake them on-site. Half-size sheet pan (13″ × 18″) is the standard format used by every Durham bakery you’d contract with — Loaf, Guglhupf, Ninth Street Bakery. Your differentiator is chocolate, not croissants.

Throughput Analysis at 50 Covers

Assumptions: 50 covers across the 6-hour brunch window (8 AM–2 PM), with peak load of 25 covers concentrated between 10:30 AM and 12:30 PM.

At 50 covers, the kitchen runs comfortably with one chef plus one prep helper. Above 60–70 covers, you’d hit a hollandaise replenishment ceiling and want a second induction burner. Don’t add the second burner at opening; revisit at 6 months once actual brunch volume is known.

Brunch staffing & economics

The four-piece equipment palette is sized for one chef plus one helper in the Food Prep room, plus the bartender handling all beverages. Total Sunday morning labor: ~30 labor-hours.

At 50 covers averaging $35 per cover, that’s $1,750 in revenue against an estimated labor cost of $480–540 (at $16–18/hr blended) and food/beverage cost of $560–630 (at 32–36% combined COGS). Estimated contribution: $580–710 per Sunday brunch service. Across a year of Sundays, that’s $30K–37K of contribution from a service that uses idle weekend afternoon real estate productively.

Buy-List Summary — Food Prep Room

Key Decisions & Open Items

Code questions to resolve at Durham AHJ plan review

• CRITICAL: Type II hood requirement over the toaster/panini/oven line. This single decision swings $6K–10K. Bring equipment cut sheets to the meeting and ask explicitly whether IMC §507 applies at this volume.
• Confirm that the food prep room can share the wash room’s three-compartment sink for warewashing.
• Confirm that the indirect drain for the hand sink can route to the wash room floor sink.
• Confirm Type II hood (if required) makeup air can be transfer-air from the dining floor.

Equipment decisions still to make

• Conveyor toaster vs. pop-up — recommendation is conveyor (Hatco TQ3-400). Revisit at 6 months post-opening.
• Hood scenario — A (with hood) or B (waived). Lock with AHJ before placing equipment orders.
• Touchless hand-sink faucet upgrade — $120–180 add. Strongly recommended given raw-egg handling at brunch.
• Whether to add a small espresso machine in this room (vs. at the back bar) for Sunday brunch.
